2023 Esp8266 Ir Remote

ESP8266 + IR Receiver + IR Transmitter

When I was using raspberry pi, I bought a IR transceiver module for Arduino. and used it for several years. IR transceiver

Raspberyr Pi, IR Transceiver and DHT11

And this year, I am interested in ESP8266, so I bought another IR receiver, IR transmitter.

Installed.

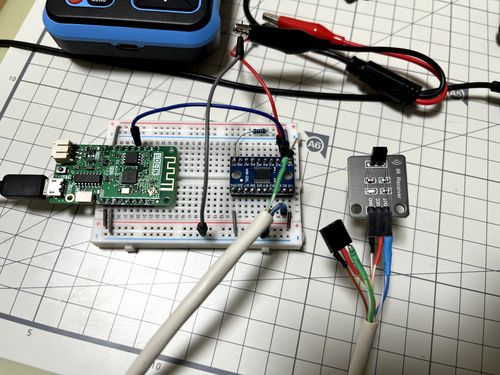

Install esp8266 and voltage converter on breadboard.

esp8266, breadboard, and ir receiver

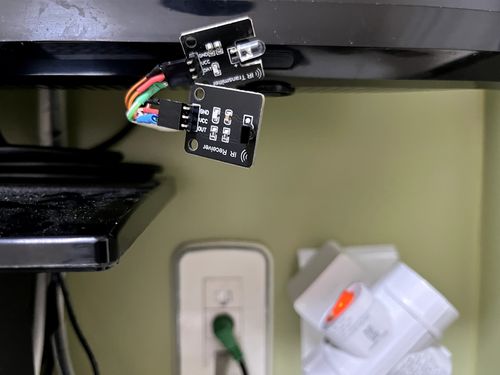

Install IR receiver and IR transmitter in front of tv

ir receiver, ir transmitter

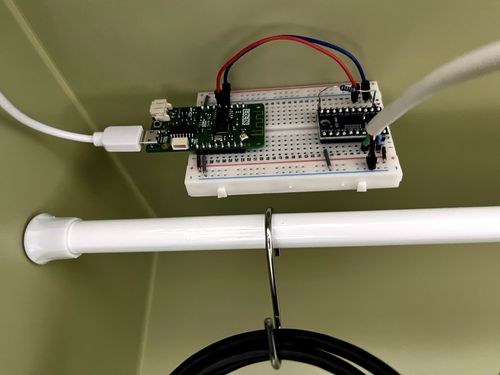

Install breadboard below of table

Installed breadboard

And here is ESPHome Source

Further more

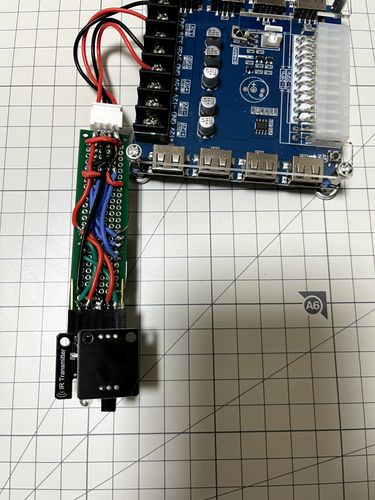

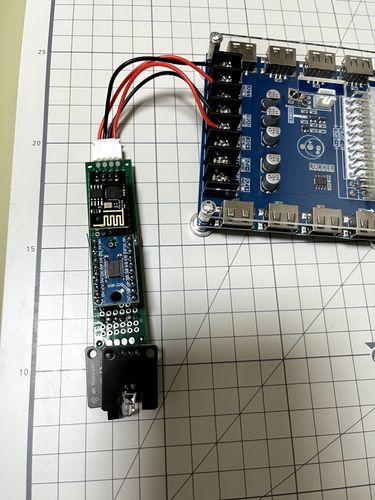

I orignally, wanted to install these.

protoboard, esp8266, voltage converter, ir receiver, ir transmitter

protoboard, esp8266, voltage converter, ir receiver, ir transmitter

ESP01 is very interesting, but, providing both 3.3v and 5v is somewhat overwhelming?
